Push Button Shower Panel For Correctional Facility

Name: Push Button Prison Shower Panel (Time&Temp Adjustable)
Brand: KS
Price: 300.00 USD
Availability: InStock
Rating: 4.90 (89 reviews)

Enhance your shower facilities at prisons with our innovative Concealed Push Button Metering Shower Panel and Vandal Resistant Shower Head. This robust combination is designed for maximum convenience, durability, and efficiency, ensuring an outstanding shower experience for all inmates.

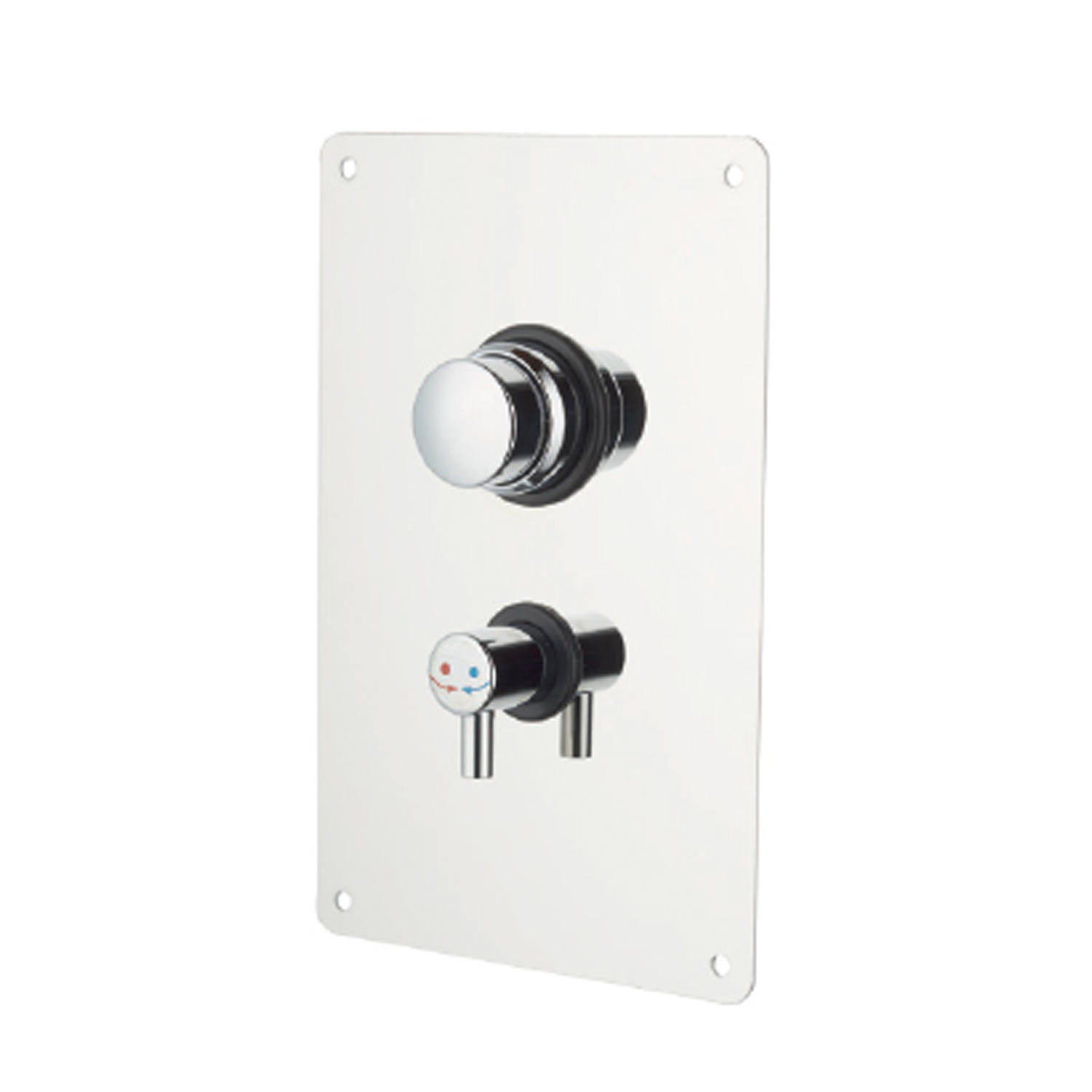

The Concealed Push Button Metering Shower Panel is perfect for environments that require reliability and ease of use. With both time and temperature adjustability, it allows for a customizable shower experience from 3 to 40 seconds per push, promoting efficient water use and delivering a consistently comfortable shower, making it an excellent choice for busy prisons. Its concealed design offers a sleek and modern look while ensuring easy maintenance and secure installation, and its sturdy construction guarantees a long-lasting addition to your shower system.

When paired with the Vandal Resistant Shower Head, this setup offers unparalleled durability and security. Crafted from solid brass with a polished chrome finish, the shower head features a conical shape to prevent tampering and ligature use, making it ideal for high-traffic areas. Its non-adjustable stream spray pattern and adjustable water flow ensure water conservation while providing a refreshing shower experience.

Engineered to withstand frequent commercial use, this shower system is perfectly suited for the demanding environment of prisons. Upgrade your shower facilities with the Concealed Push Button Metering Shower Panel and Vandal Resistant Shower Head – the ultimate combination of style, functionality, and water-saving technology.

SHOWER HEAD SPECIFICATIONS SHEET: DOWNLOAD

SHOWER HEAD INSTALLATION INSTRUCTIONS: DOWNLOAD

SHOWER VALVE SPECIFICATIONS SHEET: DOWNLOAD

SHOWER VALVE INSTALLATION INSTRUCTIONS: DOWNLOAD

SHOWER VALVE REPLACEMENT CARTRIDGE: RC-355C

Valve Type: Self Closing Metering Valve
Valve Activation: Manual Push Button Valve
Shower Head Type: Fixed Jet
Installation Type: Concealed Wall Mount
Body Material: Lead Free Solid Brass
Finish Type: Chrome Plated Finish

Connection Inlet: 1/2" MPT (3/8" FPT Adapters Included)
Connection Outlet: 1/2" MPT
Panel Width: 5.1" (130mm)
Panel Height: 7.9" (200mm)

Time Adjustable: Yes, 3-40 Seconds
Temperature Adjustable: Yes
Working Temperature Range: 40 Degrees F - 160 Degrees F
Built-in Premix: Yes
Lead Free and Corrosion Resistant
Vandal Resistant: reduces tampering and risk of flooding
Water Saving Up To 85%!

Face Plate Panel
Shower Head
Push Button Shower Valve
Adapters With Washers (1/2 in MPT to 3/8 in FPT)
Black Buffer Ring (36x42 mm)
Black Buffer Ring (20x23 mm)
Filter Screens (1/2 in)
Compression Nut With Brass Ferrule (1/2 in)
Allen Wrench For Time Regulation (1.3 mm)
Phillips Pan Head Screws With Plastic Anchors (1 1/2 in)

Replacement Cartridge: RC-355C
Rosette Plate (2 1/4 in Diameter)

ADA Compliant
Molded chrome-plated body in accordance with EN 12540
Brass body in accordance with EN 1982, EN 12164, EN 12165
200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
Timing in conformity with EN 816

Prisons and Detention Centers
